The Raise3D DF2 Solution is a complete Digital Light Printing (DLP) 3D printer that excels in rapid printing, smooth surface quality, refined details, and remarkable reliability. DF2 resin DLP printer has been optimized for engineering prototyping, manufacturing aids and low-volume production with a diverse selection of high-performance engineering resins. RFID technology ensures a traceable workflow throughout the entire print, wash, and cure process, reducing labor time and saving costs.
Compared to the time-consuming and messy workflow of DLP, the Raise3D DF2, DF Wash and DF Cure come with an RFID-tag-integrated smart build plate and a logical interface that ensures a cleaner and simpler workflow throughout the printing, washing, and curing process. This not only streamlines manual operations but also ensures your printing tasks are always accomplished with the same print results.
High-Definition Detail Inspires Greater Design Freedom
As a DLP solution, with a resolution of 2560 x 1440, combined with advanced features such as Contour Compensation and Anti-Aliasing, the DF2 produces significantly finer details and smoother surfaces compared to other 3D printing technologies. This results in greater opportunities for very small parts with a high level of definition. Additionally, advanced optical design and system calibration ensure smoothness and accuracy at every step.
- Light engine with Texas Instruments’ First Industrial-grade DMD Chip for digital light processing printing
- Premium light output quality with frame size error ≤ ±0.1 mm and distortion rate ≤ 0.1%
- Clear pixel image without superimposed effects or surface light field effect
Increased First Print Success Rate
DF2 resin 3D printers are engineered to yield a high print-success rate through both mechanical design and software support:
- Optimizations in ideaMaker, including Auto Support, Auto Orientation, and Suction Cup Detection, improve DF2’s first print success rate and reduce the need for time-consuming reprints. (Learn more about ideaMaker support for DF2 solution)
- Air-Peel technology decreases the amount of force exerted on the part to facilitate easy layer detachment, further improving the reliability of print results.
- Maximum part weight of 10 kg ensures high print quality in the Z-direction for any size print, which is supported by a heavy-duty Z-axis structure that can withstand up to 200 kg of static load.
DF2 Key Features:
RFID-Powered Smart Build Platform
RFID automatically stores and reads the relevant parameters of an entire workflow for printing, washing, and curing, reducing the need for tedious manual operations.
Industrial Grade Optical Design
Industrial-grade optical components include Texas Instruments’ first Industrial-Grade DMD Chip, High-Transparency nFEP Film, and Optical Glass made by Schott Germany.
They are used throughout the entire optical path projection system to reduce loss, and eliminate dispersion, thus ensuring the reproduction of sharp layers.
Software That Simplifies
ideaMaker has added new features designed for use with the Raise3D DF2 printer to reduce learning curves, expand design possibilities, and improve the success rate of DLP printing.
These features include:
- Antialiasing
- Auto Support
- Auto Orientation
- Auto Cross Section Analysis
- Contour Compensation
- Suction Cup Detection
- Hollow
- Drainage Hole
- Texture Generation
- Smaller Gcode Size
Magic Layout at Your Fingertips
A high-performance 10.25-inch touchscreen lets you make instantaneous changes to your files without needing to return to your slicing software.
Magic Layout allows for the easy adjustment of the print layout and duplicate prints.
Automatic Pre-Print Inspection verifies all working conditions, including resin type, build platform installation, feeding station installation, resin margin, and more.
Air-peel lightens the Load
Air-Peel technology used between the resin vat bottom and the highly clear glass reduces the peeling force from 50 kilograms to 10 kilograms, effectively helping to peel each layer and ensuring successful print results.
High-Load Capacity Z-Axis
The Z-axis features a maximum load capacity of 200kg, with high movement accuracy and no staggered layers. This ensures stability when printing large parts and during extended use.
Streamlined Resin Management
Auto Resin Refill, Ultrasonic Liquid Level Monitoring, and Assisted Resin Tank Cleanup to minimize contact with uncured resin.
The DF Wash flushing system streamlines the solvent removal process with automated drainage and an easy-to-operate automatic pump.
Technical Specifications
Print Technology: Digital Light Printing (DLP)
Build Size (W × D × H): 200 × 112 × 300 mm (7.87 × 4.41 × 11.8 inch)
XY Resolution: 2560 x 1440
Max Part Weight: 10 kg
Max Print Speed: 25 mm/h (0.1 mm per layer)
Layer Height: 50-100 micron
Resin Management: Auto Resin Feeding, Resin Level Detection, Resin Confirmation
Control Panel: Touch Screen (Resolution: 1920 × 720) with Magic Layout (Allow to easily adjust the print layout and duplicate prints)
RFID Print Platform: Record the type of resin used and the printing, washing and curing settings
Level Calibration: Calibrated in factory
Chamber Heating: Max 40℃

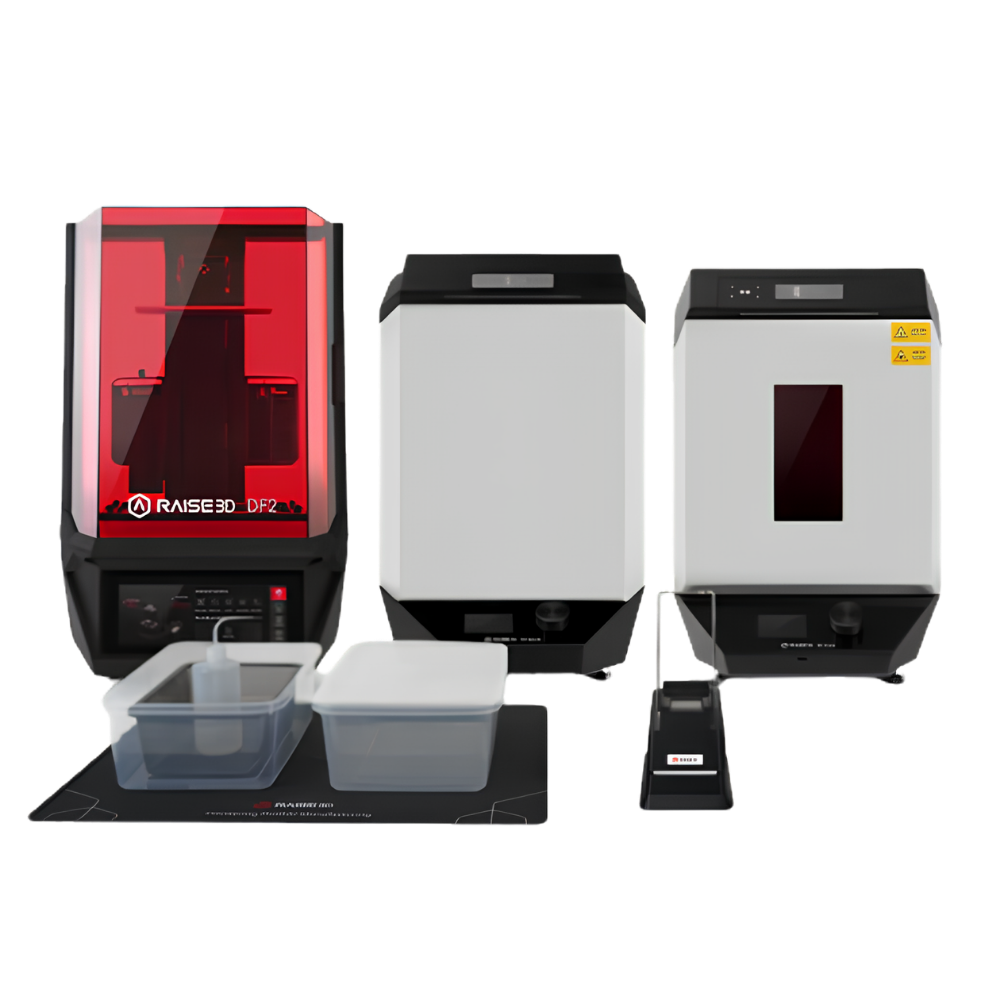

Raise3D DF2 Complete Package
This Complete Package includes the hardware and the software needed for printing. For resins, please purchase separately.
Components:
- Raise3D DF2 Printer (MSRP: $4,999)
- Raise3D DF Wash (MSRP: $1,599)
- Raise3D DF Cure (MSRP: $1,899)
- ideaMaker Slicing Software: Free with the hardware purchase
Total Value: $8,497
Complete Set Price: $7,999
You Save: $498 compared to purchasing individual devices
Print Technology: Digital Light Printing (DLP)
Build Size (W × D × H): 200 × 112 × 300 mm (7.87 × 4.41 × 11.8 inch)
XY Resolution: 2560 x 1440
Max Part Weight: 10 kg
Max Print Speed: 25 mm/h (0.1 mm per layer)
Layer Height: 50-100 micron
Resin Management: Auto Resin Feeding, Resin Level Detection, Resin Confirmation
Control Panel: Touch Screen (Resolution: 1920 × 720) with Magic Layout (Allow to easily adjust the print layout and duplicate prints)
RFID Print Platform: Record the type of resin used and the printing, washing and curing settings
Level Calibration: Calibrated in factory
Chamber Heating: Max 40℃
Raise3D DF2 Complete Package
This Complete Package includes the hardware and the software needed for printing. For resins, please purchase separately.
Components:
- Raise3D DF2 Printer (MSRP: $4,999)
- Raise3D DF Wash (MSRP: $1,599)
- Raise3D DF Cure (MSRP: $1,899)
- ideaMaker Slicing Software: Free with the hardware purchase
Total Value: $8,497
Complete Set Price: $7,999
You Save: $498 compared to purchasing individual devices
